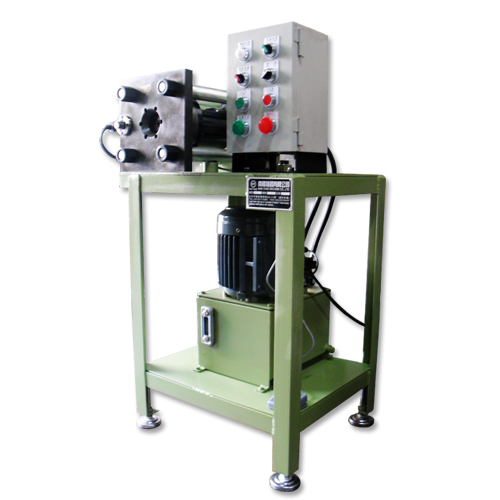

Product Specifications

  • Reduced hydraulic connector crimping pipeline
  • 2HP Pressure pump
  • Mould (1/4"，3/8"，1/2"，3/4"，1"，1-1/4"，1-1/2") a total of seven groups
  • Upper and lower limit switches
  • Foot switch
  • Manifold solenoid valve control
  • Hydraulic pressure regulator valve
  • Oil pressure gauge：0~350kg/c㎡
  • Fuel tank: 20liters, with a fuel meter (using the R68 No. hydraulic oil)
  • Power: 220 volt, single-phase. 380 volt, three-phase
  • Control box: Manul / automatic dual-use, Up / down switch, Power indicator, Automatic start, Power switch, Pump start
  • Movable body attached to the wheel
